- Chipper with 6 radial blades upon a disk of Ø 900 mm.
- Rotation speed : from 540 to 1500 rpm
- Special cutting table thickness of the chips inferior to 4 mm, without any risk of filling-in of the evacuation.
- Not any big piece or sawdust
- Very strong mechanical-weldment.
- Cutting capacity : up to 250 mm diameter (according to the available power).
- Output per hour : up to 8 m³ of chipped matter (57 m³ theoretic), according to the type of branches.
- Evacuation neck swinging out 360° for loading into trailer (2 m height).
- Optional hydraulic bough-dragger (with autonomous hydraulic generator)
- Optional feeding table (for mechanical feeding with a crane)
- On three-points tractor, on road or farm trailer, or on frame.
- Electric motor from 30 kW three-phase 400 V.
- Bezin or diesel motor from 40 kW.
- Adapted to any standardized tree-points of agricultural tractor driving by the power take-off shaft of tractor, 540 r.p.m. or 1000 r.p.m.
Move your mouse over the thumbnails to see larger images.

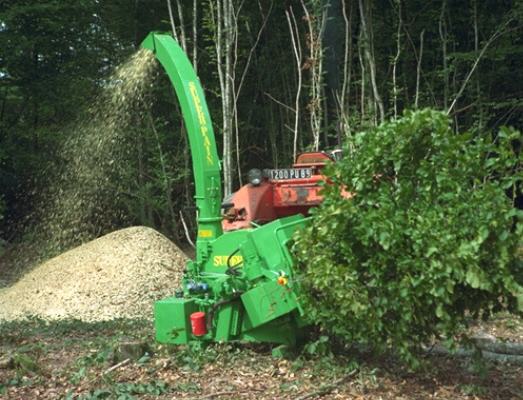

SUPER-PAIN 900 chipper option three-point tractor
with hydraulic bough-dragger, power control.

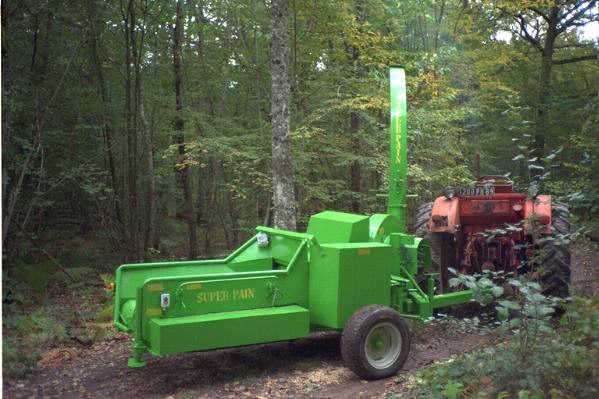

Autonomous SUPER-PAIN 900 chipper, 150 hp motor,
On road trailer, double 3.5 t central axles ; NOKKA crane 2.5 t/m length of jib 5.10 m

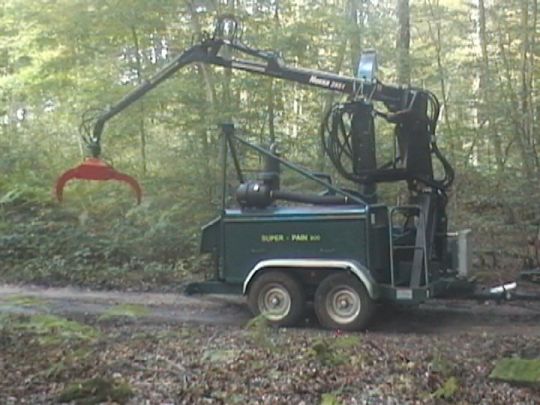

Autonomous SUPER-PAIN 900 chipper,
hydraulic bough-dragger, feeding table, for mechanized feeding.
on farm trailer
